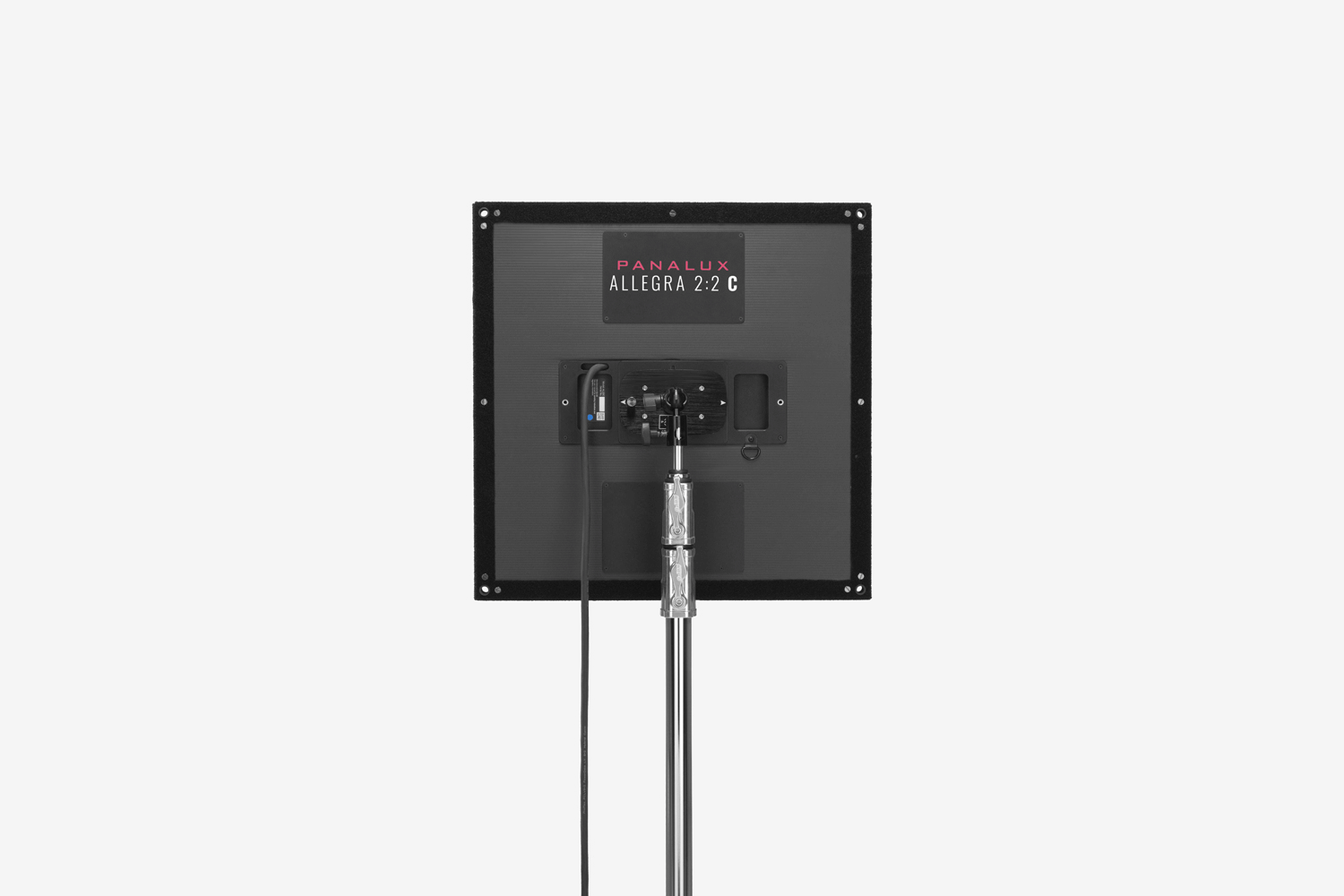

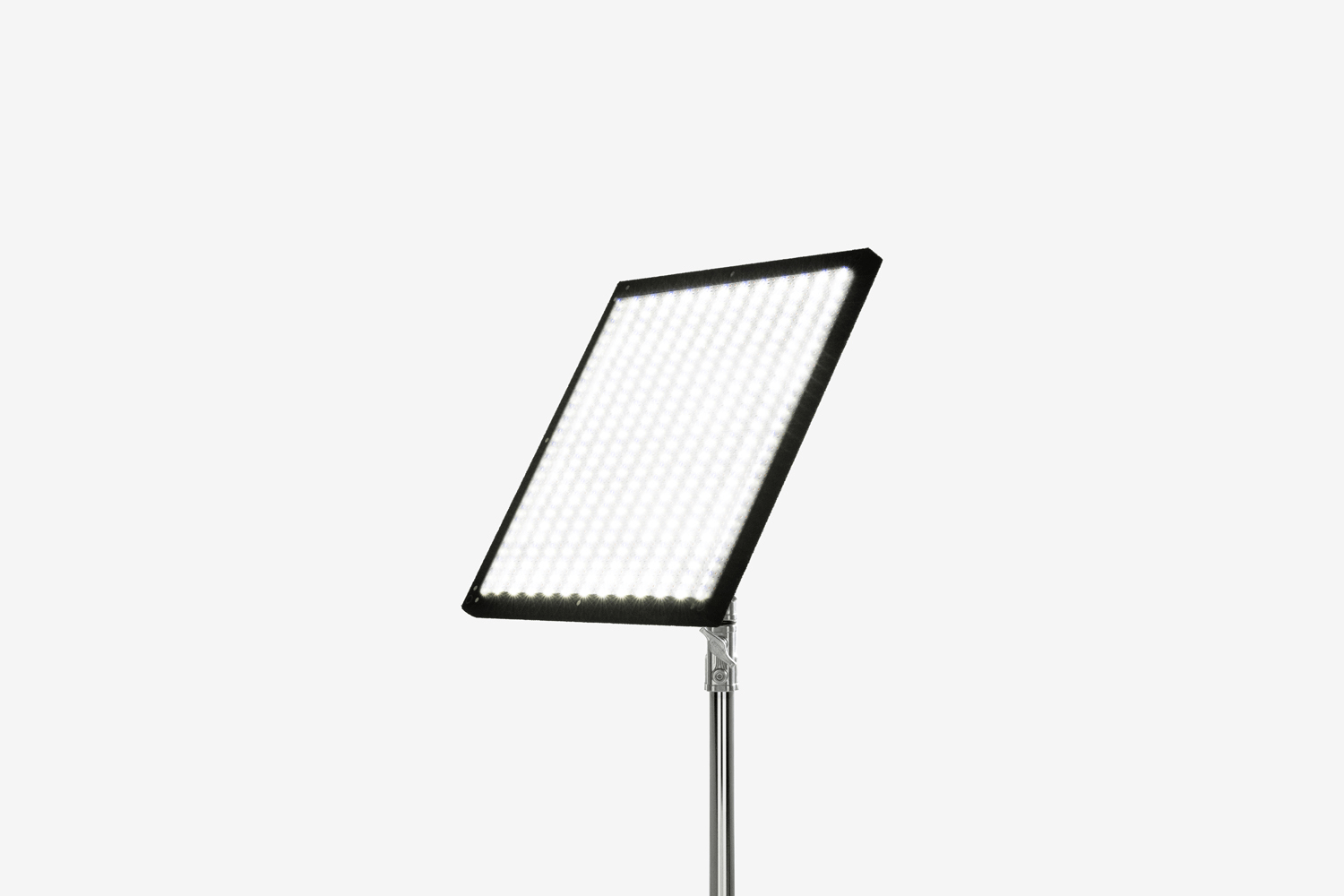

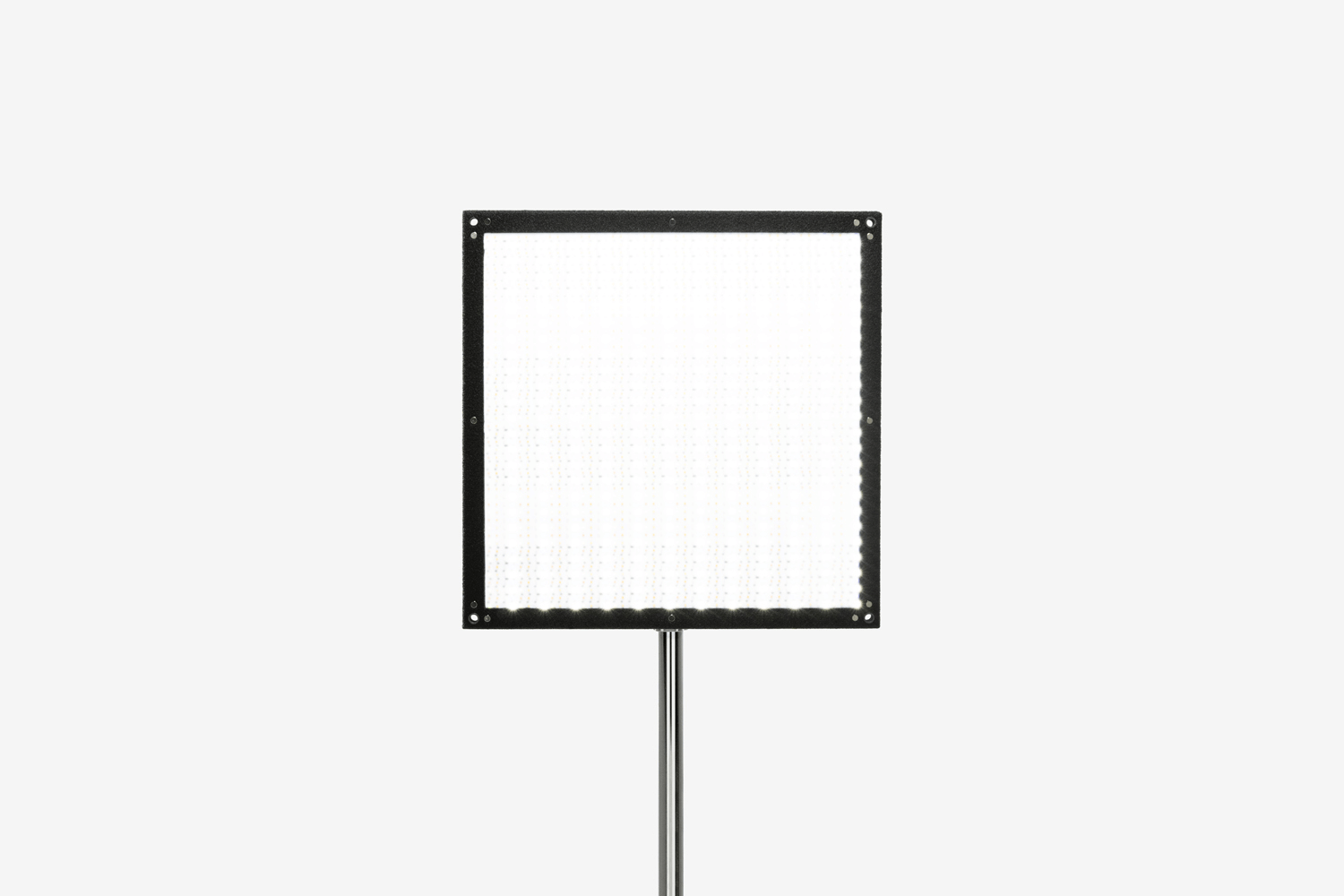

Allegra 2:2C
PanaluxHeads
The Panalux Allegra 2:2 C full-colour LED head incorporates a proprietary light engine that produces a broad-spectrum wide CCT range of 1,600-20,000K with extremely fine colour-rendering across a super-wide gamut, ensuring excellent skin-tone rendering and enabling a wide range of LEE Filters gel emulations. The head operates in conjunction with the Panalux Allegra C DMX LED Control, which features an onboard power supply, a simple, intuitive, fully featured user interface, and full connectivity options including native LumenRadio CRMX.
Product Details
| Manufacturer | Panalux |
|---|---|
| Model | Allegra 2:2C |
| Dimensions (mm)(in) | 533 x 533 x 29 |
| Variant | 2:2C |
| Light Source | LED |
| Power Draw (W) | 168 |
| Lux @ 3M (3200K) | 484 |
| Lux @ 3M (5600K) | 500 |
| TLCI | 97 |
| CRI | 97 |
| SSI | 80 (3200K) |
| CCT Range | 1600K-20000K |
| Light Aperture | 497 x 497 |
| Beam Angle Max (°) | 120 |
| High Speed Capability | Yes |
| Protection Rating | IP40 |
| Mounting | Kino mount/8.5mm dia eyelets |
| Panalux SKU | HIO8WAR |
| Weight (kg)(lbs) | 3.56 7.85 |

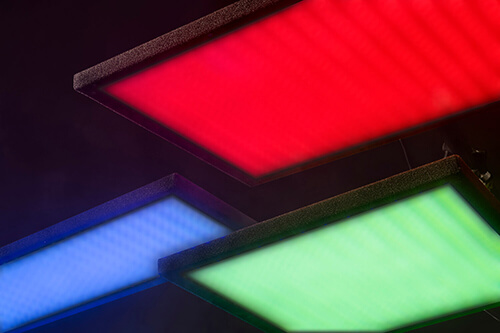

Accurate, powerful, full-colour Panalux Allegra C LED heads incorporate a proprietary light engine that produces a broad-spectrum wide CCT range of 1,600-20,000K and enables extremely fine colour-rendering, with gamut presets for Rec 709, Rec 2020, and ESTA 1.54. The unique eight-chip set includes five phosphors and three narrow-band R, G, B chips, optimizing skin-tone rendering and allowing for a significant range of LEE Filters gel emulations with either a broad spectral breadth or a high level of saturation.
The heads operate in conjunction with the Panalux Allegra C DMX LED Control, which features an onboard power supply and a simple, intuitive, fully featured user interface with the same menu structure that was developed for the Panalux Sonara range, providing familiarity and ease of use. Each Panalux Allegra C DMX LED Control can control one or two panels and can be powered by universal AC power or DC from 24V-36V. Control options include local, wired DMX, and wireless DMX using LumenRadio protocol.

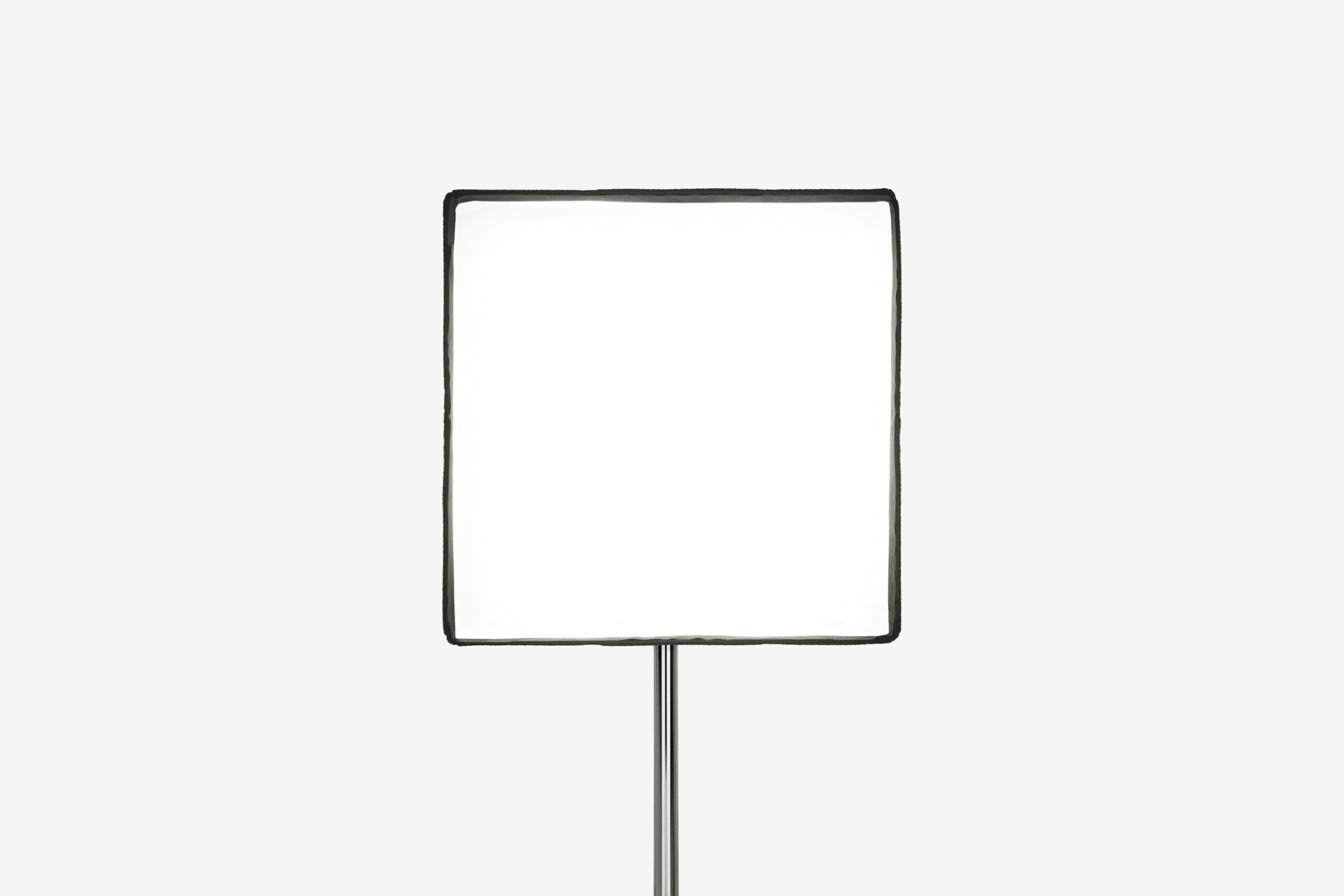

Panalux Allegra C heads feature a range of rigging options, including omnimount and corner-eyes mounting points. All kits come packaged with the head and textiles in a soft case and the power supply and mounting accessories in a protective Peli case. Accessories include black skirt; ¼, ½, and Full Grid; Magic Cloth; and SnapGrid.
Panalux Allegra C Family Manual
User manual detailing the features and operations of the Panalux Allegra C range of LED heads and ballasts.
Download PDF
Panavision Allegra C Manual - French Language
User manual detailing the features and operations of the Panalux Allegra C range of LED heads and ballasts. Language - French
Download PDF
